Description

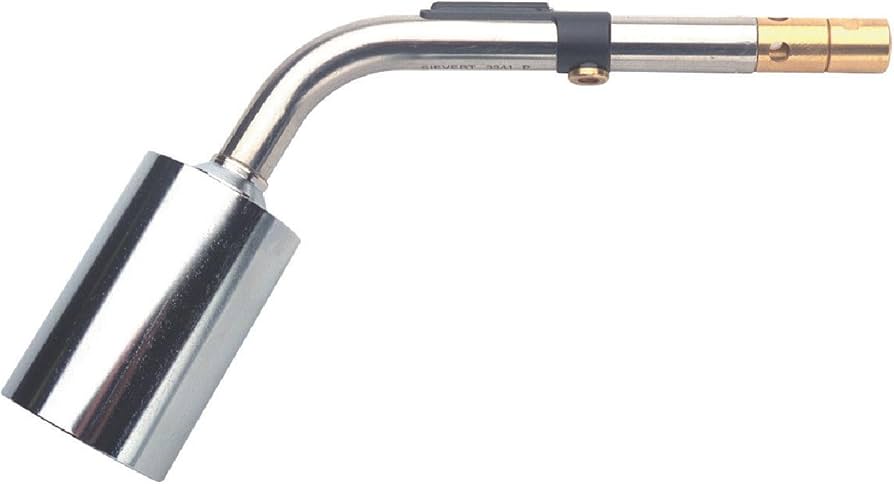

The Sievert Promatic 3348-91 Soft Flame Burner is designed for precision heat applications such as cable work and heat shrinking. Featuring a 50mm diameter burner head, it delivers a sweeping, powerful yellow and blue soot-free windproof flame. The design allows fresh air intake to keep the burner head cool, minimizing the risk of damaging shrink materials. Compatible with the Sievert Promatic Universal Handle (3366-97), this burner operates at a working pressure of 2 bar with a gas consumption of 2000g/h.
| Feature |
Details |
| Model Number |
3348-91 |
| Burner Diameter |
50 mm |
| Flame Type |
Soft, sweeping, wind-resistant, soot-free yellow/blue flame |
| Heat Output |
26 kW (approximately 88,700 BTU/hr) |
| Gas Consumption |
2000 g/h (4.5 lb/hr) at 2 bar (29 psi) working pressure |
| Maximum Sleeve Size |
Up to 150 mm thick-wall sleeves |
| Compatible Handle |
Sievert Promatic Handle 3366-97 (push-and-twist connection) |
| Applications |
Cable work, heat shrinking, telecom and electrical installations |
| Weight |
Approximately 0.27 kg |
| Dimensions |
Approximately 30 × 16 × 5 cm |
| Fuel Type |
LPG (Propane/Butane) |
| Construction |
Durable metal body with brass connector |
